Z11型脹緊聯結套
- 產品簡介： Z11型脹緊套定位精度高,轂孔簡單,應用廣泛.注:Z11型脹緊聯結套螺釘的機械性能等級為12.9級.
- 咨詢熱線：0317-8309525
-
產品詳情
性能特點
Z11型脹緊套定位精度高,轂孔簡單，應用廣泛。
標記示例

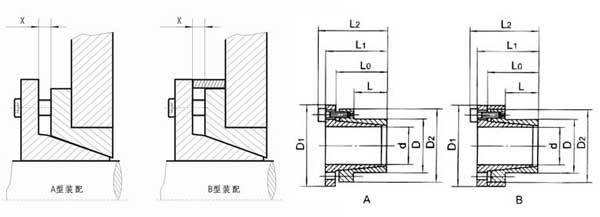

Z11型脹緊聯結套的基本尺寸和參數
注：Z11型脹緊聯結套螺釘的機械性能等級為12.9級
| 基本尺寸 | 額定負荷 | 內六 角螺釘 | 螺釘的擰緊力矩MA N·m | 脹套與軸結合面上的壓力 Pf N/m㎡ | 脹套與輪轂結合面上的壓力Pˊf N/m㎡ | 重 量 （ ㎏ ） | ||||||||||||||
| d | D | d0 | L0 | l | l1 | l2 | D1 | D2 | 轉矩Mt N·m | 軸向力Ft kN | ||||||||||
| mm | d1 | n | ||||||||||||||||||
| 裝配形式 | A | B | A | B | A | B | A | B | ||||||||||||
| 14 | 23 | 28.5 | 23 | 14 | 26 | 30 | 38 | 33 | 108 | 68 | 15.5 | 9.7 | M4 | 4 | 4.9 | 210 | 132 | 128 | 80 | 0.15 |
| 15 | 24 | 32 | 29 | 16 | 36 | 42 | 45 | 40 | 285 | 179 | 35.5 | 22.4 | M6 | 4 | 17 | 307 | 193 | 219 | 138 | 0.26 |
| 16 | 24 | 32 | 29 | 16 | 36 | 42 | 45 | 40 | 285 | 179 | 35.5 | 22.4 | M6 | 4 | 17 | 328 | 206 | 219 | 138 | 0.25 |
| 18 | 26 | 34 | 34 | 18 | 41 | 47 | 47 | 42 | 320 | 200 | 35.5 | 22.4 | M6 | 4 | 17 | 290 | 184 | 202 | 127 | 0.27 |
| 19 | 27 | 35 | 34 | 18 | 41 | 47 | 49 | 43 | 335 | 212 | 35.5 | 22.4 | M6 | 4 | 17 | 276 | 174 | 195 | 122 | 0.30 |
| 20 | 28 | 36 | 34 | 18 | 41 | 47 | 50 | 44 | 350 | 224 | 35.5 | 22.4 | M6 | 4 | 17 | 262 | 165 | 187 | 118 | 0.30 |
| 22 | 32 | 40 | 41 | 25 | 48 | 54 | 54 | 48 | 353 | 231 | 35.5 | 22.4 | M6 | 4 | 17 | 155 | 101 | 106 | 69 | 0.38 |
| 24 | 34 | 42 | 41 | 25 | 48 | 54 | 56 | 50 | 636 | 400 | 53.4 | 33.6 | M6 | 6 | 17 | 237 | 149 | 167 | 105 | 0.40 |
| 25 | 34 | 42 | 41 | 25 | 48 | 54 | 56 | 50 | 665 | 420 | 53.4 | 33.6 | M6 | 6 | 17 | 228 | 143 | 167 | 105 | 0.39 |
| 28 | 39 | 47 | 41 | 25 | 48 | 54 | 61 | 55 | 745 | 470 | 53.4 | 33.6 | M6 | 6 | 17 | 204 | 128 | 146 | 92 | 0.47 |
| 30 | 41 | 49 | 41 | 25 | 48 | 54 | 62 | 57 | 795 | 500 | 53.4 | 33.6 | M6 | 6 | 17 | 189 | 119 | 139 | 87 | 0.48 |
| 32 | 43 | 51 | 41 | 25 | 48 | 54 | 65 | 59 | 1136 | 715 | 71.3 | 44.8 | M6 | 8 | 17 | 237 | 149 | 177 | 111 | 0.52 |
| 35 | 47 | 54 | 45 | 32 | 52 | 58 | 69 | 62 | 1160 | 735 | 71.3 | 44.8 | M6 | 8 | 17 | 152 | 99 | 114 | 74 | 0.63 |
| 38 | 50 | 58 | 45 | 32 | 52 | 58 | 72 | 66 | 1223 | 797 | 71.3 | 44.8 | M6 | 8 | 17 | 140 | 92 | 106 | 70 | 0.67 |
| 40 | 53 | 61 | 45 | 32 | 52 | 58 | 75 | 69 | 1287 | 840 | 71.3 | 44.8 | M6 | 8 | 17 | 133 | 87 | 100 | 66 | 0.74 |
| 42 | 55 | 63 | 45 | 32 | 52 | 58 | 78 | 71 | 1352 | 881 | 71.3 | 44.8 | M6 | 8 | 17 | 127 | 82 | 102 | 66 | 0.78 |
| 45 | 59 | 69.5 | 64 | 45 | 72 | 80 | 86 | 80 | 2677 | 1745 | 119 | 77.6 | M8 | 8 | 41 | 155 | 102 | 119 | 78 | 1.23 |
| 48 | 62 | 71.5 | 64 | 45 | 72 | 80 | 87 | 81 | 2855 | 1860 | 119 | 77.6 | M8 | 8 | 41 | 145 | 95 | 113 | 74 | 1.24 |
| 50 | 65 | 75.5 | 64 | 45 | 72 | 80 | 92 | 86 | 2975 | 1940 | 119 | 77.6 | M8 | 8 | 41 | 140 | 92 | 108 | 70 | 1.40 |
| 55 | 71 | 81.5 | 74 | 55 | 82 | 90 | 98 | 92 | 3680 | 2400 | 133 | 87.2 | M8 | 9 | 41 | 117 | 77 | 91 | 60 | 1.70 |
| 60 | 77 | 87.5 | 74 | 55 | 82 | 90 | 104 | 98 | 4015 | 2620 | 133 | 87.2 | M8 | 9 | 41 | 107 | 70 | 84 | 55 | 1.90 |
| 65 | 84 | 94.5 | 74 | 55 | 82 | 90 | 111 | 105 | 4350 | 2840 | 133 | 87.2 | M8 | 9 | 41 | 100 | 65 | 77 | 55 | 2.20 |
| 70 | 90 | 101.5 | 87 | 65 | 97 | 107 | 119 | 113 | 7440 | 4850 | 212 | 139 | M10 | 9 | 83 | 123 | 81 | 96 | 63 | 3.05 |
| 75 | 95 | 107 | 87 | 65 | 97 | 107 | 126 | 119 | 7970 | 5200 | 212 | 139 | M10 | 9 | 83 | 114 | 75 | 91 | 59 | 3.32 |
| 80 | 100 | 112.5 | 87 | 65 | 97 | 107 | 131 | 125 | 11335 | 7390 | 283 | 184 | M10 | 12 | 83 | 144 | 94 | 115 | 75 | 3.50 |
| 85 | 106 | 118.5 | 87 | 65 | 97 | 107 | 137 | 131 | 12040 | 7850 | 283 | 184 | M10 | 12 | 83 | 135 | 88 | 108 | 71 | 3.81 |
| 90 | 112 | 124.5 | 87 | 65 | 97 | 107 | 144 | 137 | 12750 | 8320 | 283 | 184 | M10 | 12 | 83 | 128 | 83 | 102 | 67 | 4.20 |
